Kriya documentation

Build the scene.
Script the behavior.

Learn the runtime model, author TypeScript gameplay, connect an AI agent through MCP, and ship the same project across platforms.

Start scripting Browse API

Engine: 0.5.0
Engine API entries: 667
Top-level symbols: 106

Quick start

Your first gameplay script.

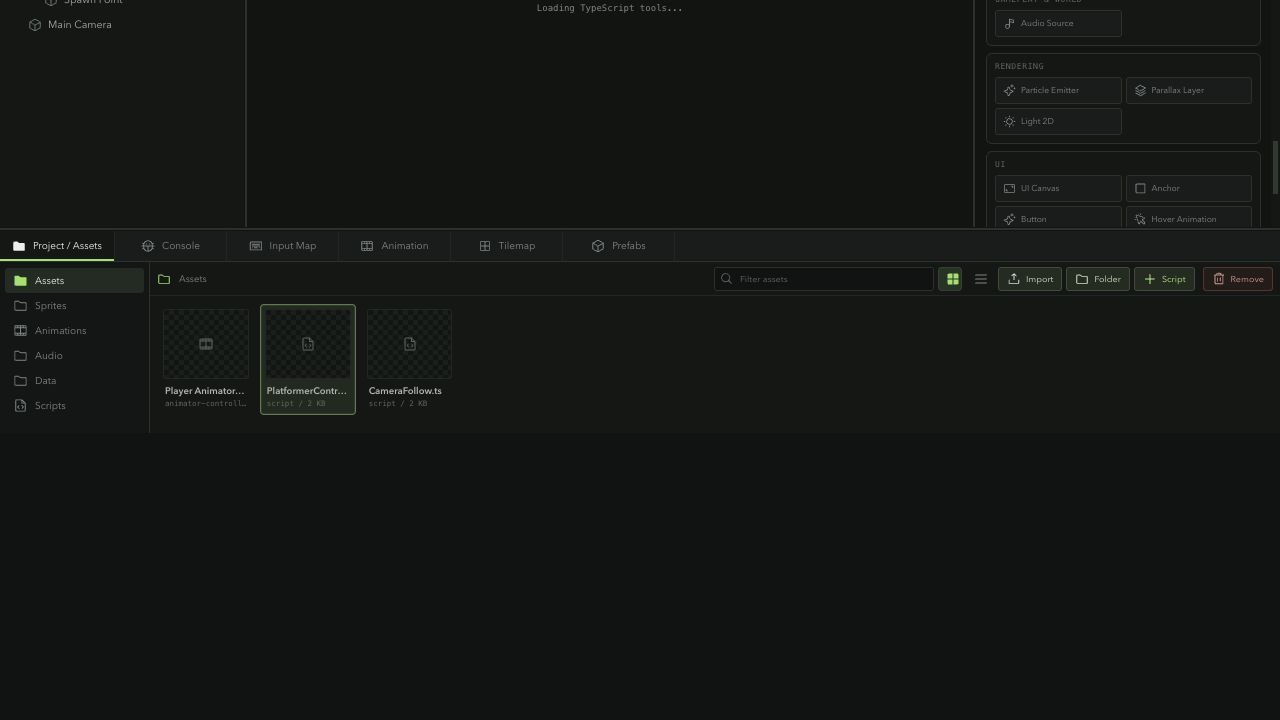

Create a TypeScript asset, attach it through a Script component, then press Play. Kriya compiles project scripts and reports diagnostics inside the editor.

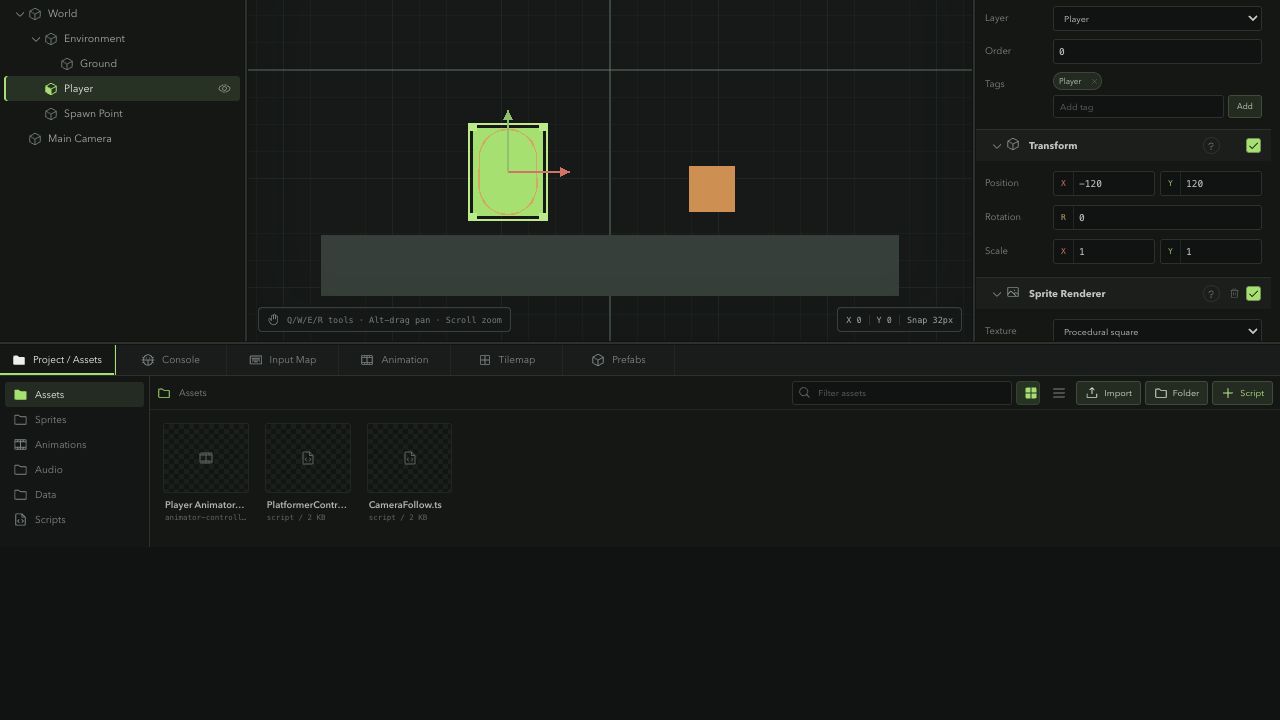

CreateChoose Script in the Project panel and save a default-exported class.
AttachAdd a Script component to an entity and select the script asset.

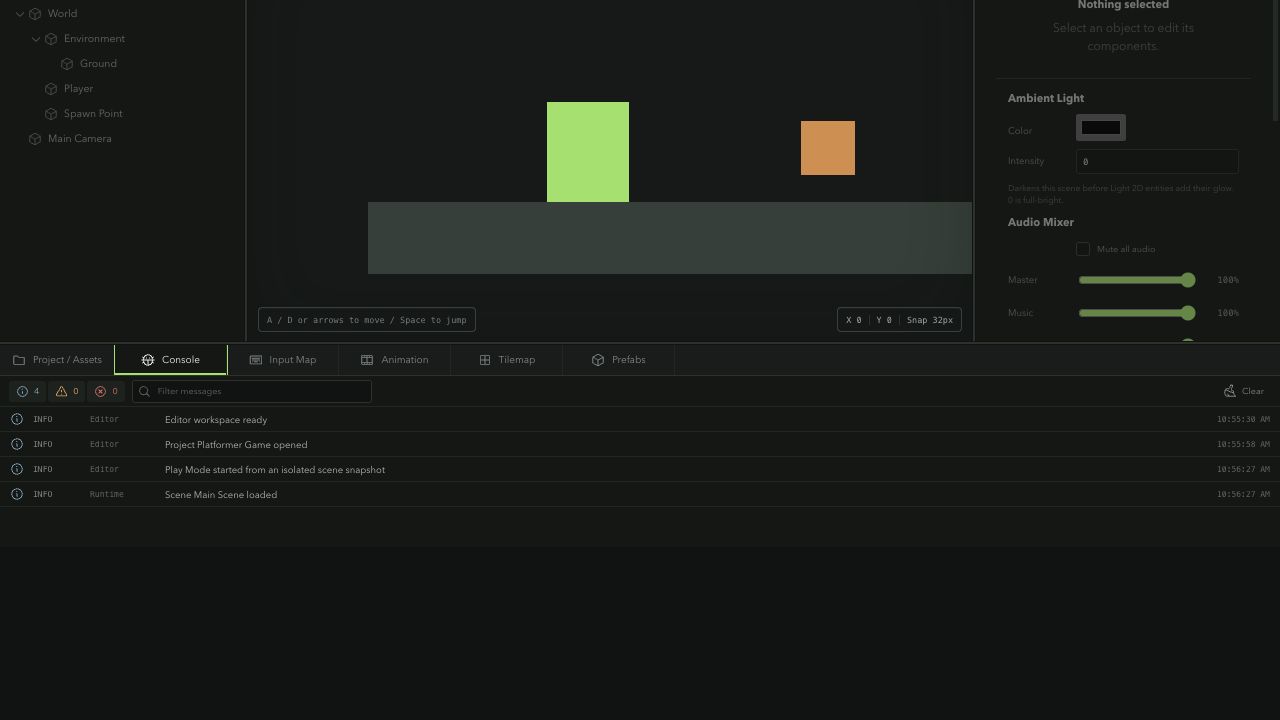

PlayRun the isolated Play Mode. Stop restores the untouched editor project.

import { Debug, Input, Script, property } from "@engine/runtime";

export default class PlayerController extends Script {
  @property({ type: "number", min: 0, step: 10 })
  moveSpeed = 250;

  start() {
    Debug.log(`${this.entity.name} started`);
  }

  update(delta: number) {
    const direction = Input.getAxis("MoveLeft", "MoveRight");
    const velocity = this.entity.getVelocity();
    this.entity.setVelocity(direction * this.moveSpeed, velocity.y);
    void delta;
  }
}

Script imports

Use @engine/runtime for public engine APIs. Relative imports between project scripts are supported; editor modules are not.

Scripting lifecycle

Every callback has one job.

A script is bound to its entity before lifecycle execution. Failures are isolated per callback and reported with script locations.

awakeOnce, immediately after bindings exist.

onEnableWhenever the script becomes enabled.

startOnce, before the first update.

updateEvery rendered frame.

fixedUpdateBefore each physics step.

onDisableWhen the active script is disabled.

onDestroyOnce, before the instance is discarded.

Physics callbacks

onCollisionEnter, Stay, and Exit receive non-trigger contacts. Trigger variants receive overlaps.

Owned resources

this.timer and this.events clean up script-owned timers and listeners automatically on destruction.

Inspector properties

Expose tuning without writing UI.

The @property() decorator turns script fields into serialized Inspector controls with labels, ranges, steps, and options.

@property({ type: "number", label: "Move Speed", min: 0, step: 10 })
moveSpeed = 250;

@property({ type: "boolean", label: "Can Double Jump" })
canDoubleJump = true;

@property({ type: "enum", label: "Movement", options: ["Walk", "Run"] })
movement = "Walk";

Supported metadata includes numbers, strings, booleans, vectors, colors, enums, entities, prefabs, and asset references.

Runtime systems

Small APIs that compose.

Runtime modules are React-free and operate on the active serialized scene, physics world, input map, and game services.

Scene

Find entities by name, ID, tag, layer, or attached component.

Open reference

Input

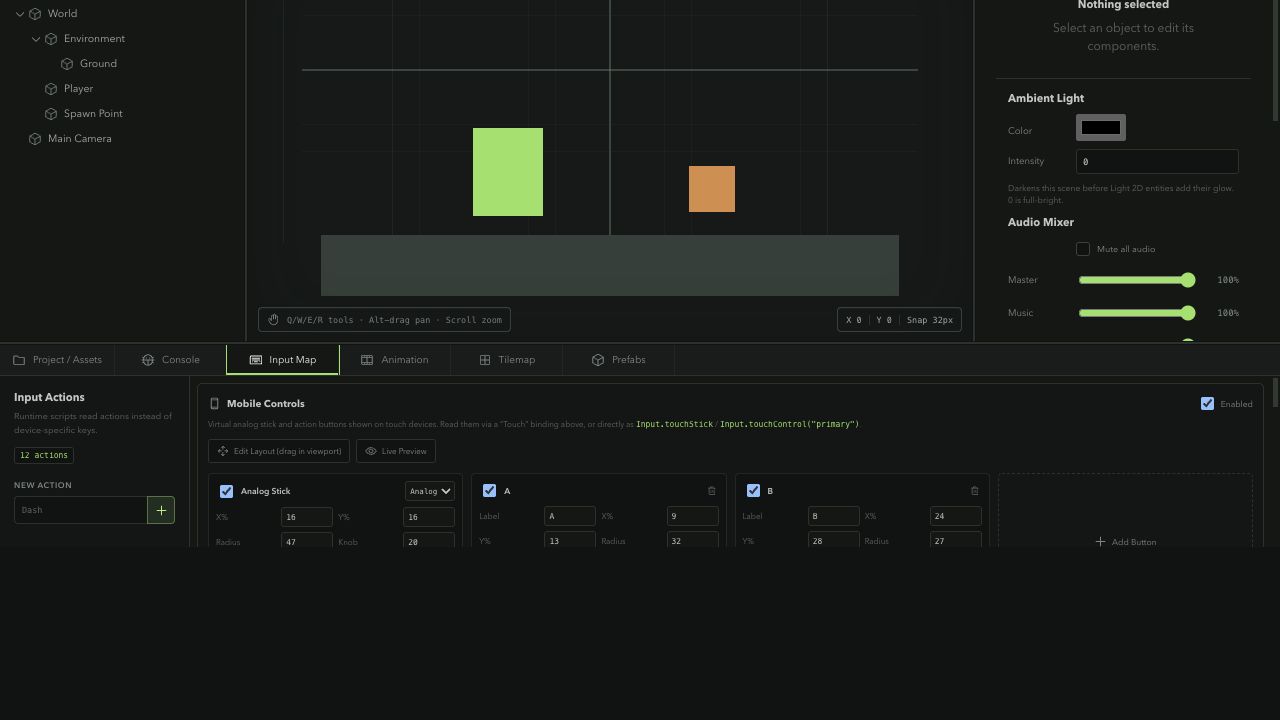

Read named actions, pointer state, touch controls, and gamepads.

Open reference

Physics2D

Raycast, shape cast, and overlap against the Matter.js world.

Open reference

Timer

Schedule scaled or unscaled callbacks with automatic script cleanup.

Open reference

Events

Publish typed global signals or listen through an entity-local event bus.

Open reference

Navigation

Find deterministic A* paths across collision-enabled Tilemap layers.

Open reference

Save

Persist JSON-serializable progress, settings, checkpoints, and scores.

Open reference

Dialogue

Start, advance, branch, and end authored DialogueBox conversations.

Open reference

import { LayerMask, Physics2D, Scene, Script } from "@engine/runtime";

export default class EnemySensor extends Script {
  start() {
    const player = Scene.findByTag("Player");
    if (!player) return;

    const hit = Physics2D.raycast(
      this.transform.position,
      { x: 1, y: 0 },
      { distance: 240, layerMask: LayerMask.from("Player") },
    );

    if (hit?.entity.id === player.id) this.entity.playAnimation("Attack");
  }
}

Engine components

Compose entities from focused parts.

Every entity owns a required Transform. Other components add rendering, physics, animation, audio, scripts, tilemaps, cameras, UI, and dialogue.

Core

Transform
Script

Rendering

SpriteRenderer
TextRenderer
ParticleEmitter
ParallaxLayer
Light2D

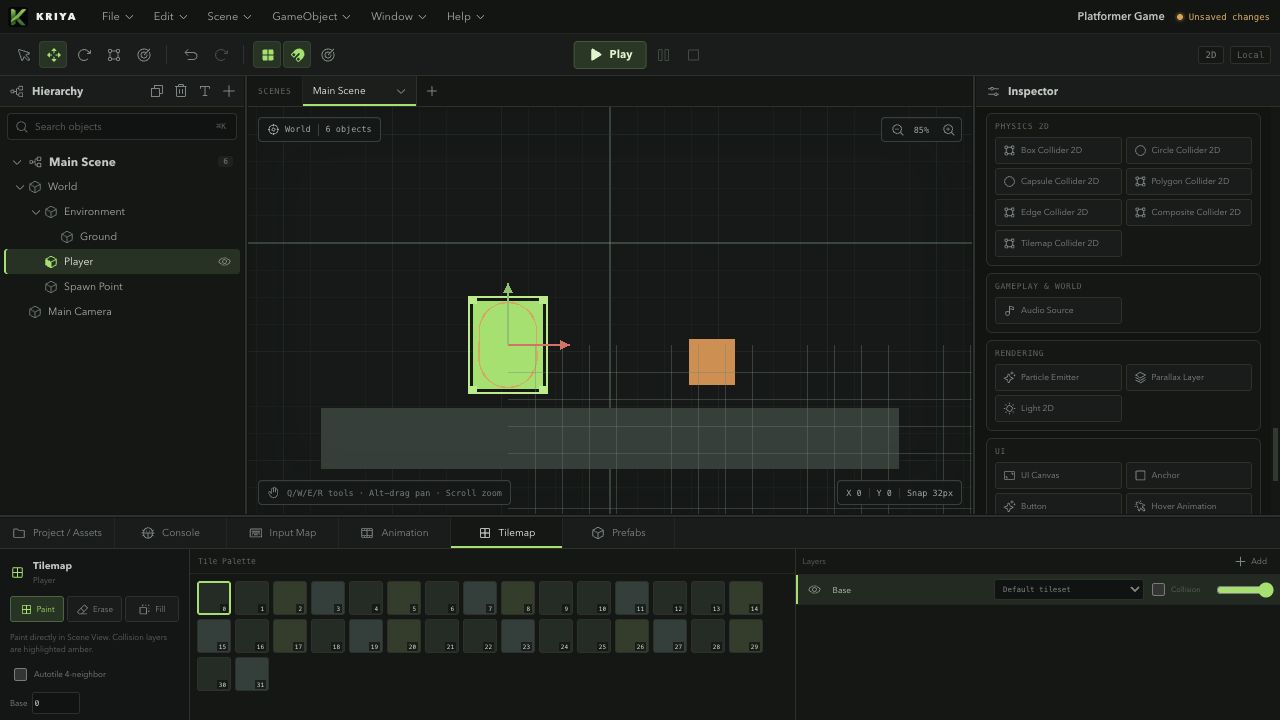

Tilemap

Physics

Rigidbody2D
BoxCollider2D
CircleCollider2D
CapsuleCollider2D
PolygonCollider2D
EdgeCollider2D
CompositeCollider2D
TilemapCollider2D

Interface

UICanvas
Anchor
UIButton
UIHoverAnimation
UIPanel
DialogueBox

Gameplay

Camera2D
Animator
AudioSource

Runtime entity access

Use getComponent(), getComponents(), hasComponent(), addComponent(), and removeComponent(). Transform cannot be removed.

MCP and AI agents

Let an agent work on the active project.

Kriya's desktop MCP server exposes structured tools for scenes, entities, components, assets, scripts, input, animation, prefabs, navigation, and builds.

Open setupChoose Help, then MCP Server Setup in the desktop editor.
Copy onceAdd the generated stdio configuration to your MCP client.
Go liveUse the MCP Offline button to synchronize the project currently open in Kriya.

Agents can read before changing, compile TypeScript with diagnostics, update the active project, and invoke Kriya's export pipeline.

kriya://project kriya://scripting-api

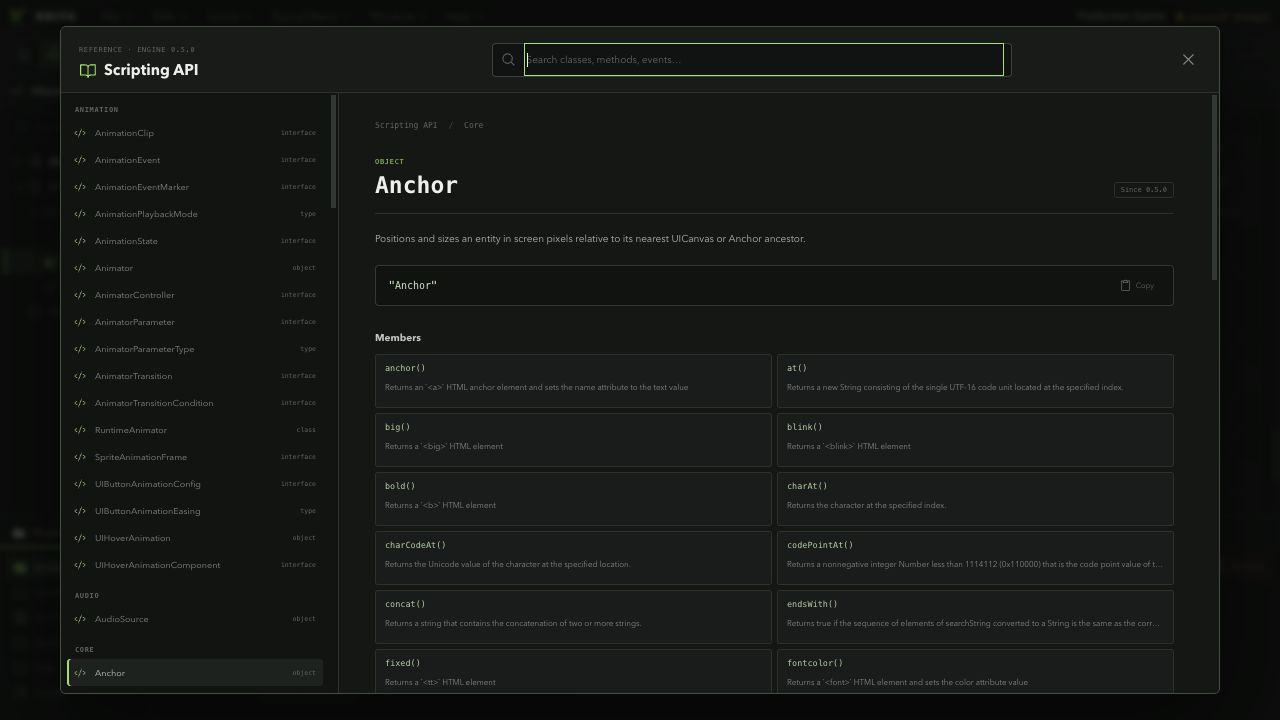

Generated API reference

Search the public runtime surface.

These symbols are generated from the same TypeScript source and TSDoc used by Monaco autocomplete and Kriya's built-in Help.

Search symbols, signatures, or descriptions

106 top-level symbols

Anchor object / Core

Positions and sizes an entity in screen pixels relative to its nearest UICanvas or Anchor ancestor.

"Anchor"

src/runtime/index.ts:136

AnchorPoint type / Core

The nine screen-relative anchor points, or "stretch" to fill the parent rect inset by offset.

type AnchorPoint

src/shared/types/components.ts:173

AssetData interface / Core / 23 members

AssetData scripting API.

interface AssetData

src/shared/types/assets.ts:47

Members

animationClipId

property

AssetData.animationClipId: string | undefined

Links an editor-visible `.anim` asset to ProjectData.animations.

animatorControllerId

property

AssetData.animatorControllerId: string | undefined

Links an editor-visible controller asset to ProjectData.animatorControllers.

compiledSource

property

AssetData.compiledSource: string | undefined

AssetData.compiledSource runtime value.

diagnostics

property

AssetData.diagnostics: string[] | undefined

AssetData.diagnostics runtime value.

folderId

property

AssetData.folderId: string | null | undefined

Virtual Asset Browser folder. Null or omitted places the asset at the project root.

height

property

AssetData.height: number | undefined

AssetData.height runtime value.

id

property

AssetData.id: string

AssetData.id runtime value.

mimeType

property

AssetData.mimeType: string

AssetData.mimeType runtime value.

missing

property

AssetData.missing: boolean | undefined

Editor-only status set when sourcePath cannot be read.

name

property

AssetData.name: string

AssetData.name runtime value.

physicsMaterial

property

AssetData.physicsMaterial: PhysicsMaterial2D | undefined

AssetData.physicsMaterial runtime value.

scriptProperties

property

AssetData.scriptProperties: ScriptPropertyMetadata[] | undefined

AssetData.scriptProperties runtime value.

size

property

AssetData.size: number

AssetData.size runtime value.

sourceChanged

property

AssetData.sourceChanged: boolean | undefined

Editor-only status set when the external source differs from the last saved project metadata.

sourceMap

property

AssetData.sourceMap: ScriptSourceMap | undefined

AssetData.sourceMap runtime value.

sourceModifiedAt

property

AssetData.sourceModifiedAt: number | undefined

Last filesystem modification time observed when the external source was saved or loaded.

sourcePath

property

AssetData.sourcePath: string | undefined

Project-relative source file used by desktop projects. Browser projects keep using inline src data.

sourceText

property

AssetData.sourceText: string | undefined

AssetData.sourceText runtime value.

spriteFrame

property

AssetData.spriteFrame: SpriteFrameData | undefined

AssetData.spriteFrame runtime value.

spriteImport

property

AssetData.spriteImport: SpriteImportSettings | undefined

AssetData.spriteImport runtime value.

src

property

AssetData.src: string

Resolved data URL while the project is open; omitted from desktop project files for external assets.

type

property

AssetData.type: AssetType

AssetData.type runtime value.

width

property

AssetData.width: number | undefined

AssetData.width runtime value.

Bounds2D interface / Core / 4 members

Bounds2D scripting API.

interface Bounds2D

src/runtime/scripting/Collider2D.ts:5

Members

center

property

Bounds2D.center: Vector2

Bounds2D.center runtime value.

max

property

Bounds2D.max: Vector2

Bounds2D.max runtime value.

min

property

Bounds2D.min: Vector2

Bounds2D.min runtime value.

size

property

Bounds2D.size: Vector2

Bounds2D.size runtime value.

CollisionEvent2D class / Core / 21 members

Detailed non-trigger collision callback data. Extends the other collider for backward compatibility.

class CollisionEvent2D

src/runtime/scripting/PhysicsEvents2D.ts:8

Members

component

property

CollisionEvent2D.component: Collider2DComponent

CollisionEvent2D.component runtime value.

contacts

property

CollisionEvent2D.contacts: ContactPoint2D[]

CollisionEvent2D.contacts runtime value.

containsPoint

method

CollisionEvent2D.containsPoint(point: Vector2Like): boolean

Tests a world-space point against this collider's exact engine shape.

enabled

property

CollisionEvent2D.enabled: boolean

CollisionEvent2D.enabled runtime value.

entity

property

CollisionEvent2D.entity: RuntimeEntity

CollisionEvent2D.entity runtime value.

getBounds

method

CollisionEvent2D.getBounds(): Bounds2D

Returns a world-axis-aligned bounding box.

getClosestPoint

method

CollisionEvent2D.getClosestPoint(point: Vector2Like): Vector2

Returns the closest point on or inside the collider in world space.

id

property

CollisionEvent2D.id: string

CollisionEvent2D.id runtime value.

isTrigger

property

CollisionEvent2D.isTrigger: boolean

CollisionEvent2D.isTrigger runtime value.

layer

property

CollisionEvent2D.layer: string

Collider filtering uses its owning entity's project layer.

material

property

CollisionEvent2D.material: PhysicsMaterial2D | null

Physics material asset ID. Material assets are introduced in Collider Phase 2.

name

property

CollisionEvent2D.name: string

CollisionEvent2D.name runtime value.

normal

property

CollisionEvent2D.normal: Vector2

CollisionEvent2D.normal runtime value.

offset

property

CollisionEvent2D.offset: Vector2

CollisionEvent2D.offset runtime value.

oneWay

property

CollisionEvent2D.oneWay: boolean

CollisionEvent2D.oneWay runtime value.

oneWayDirection

property

CollisionEvent2D.oneWayDirection: Vector2

Local direction of the solid face for one-way collision handling.

oneWayTolerance

property

CollisionEvent2D.oneWayTolerance: number

Positional tolerance in world units used near a one-way surface.

otherCollider

property

CollisionEvent2D.otherCollider: Collider2D

CollisionEvent2D.otherCollider runtime value.

otherEntity

property

CollisionEvent2D.otherEntity: RuntimeEntity

CollisionEvent2D.otherEntity runtime value.

relativeVelocity

property

CollisionEvent2D.relativeVelocity: Vector2

CollisionEvent2D.relativeVelocity runtime value.

selfCollider

property

CollisionEvent2D.selfCollider: Collider2D

CollisionEvent2D.selfCollider runtime value.

ComponentConstructor type / Core / 1 members

ComponentConstructor scripting API.

type ComponentConstructor

src/runtime/scene/SceneQuery.ts:6

Members

name

property

ComponentConstructor.name: string

ComponentConstructor.name runtime value.

ComponentQuery type / Core

ComponentQuery scripting API.

type ComponentQuery

src/runtime/scene/SceneQuery.ts:7

ContactPoint2D interface / Core / 3 members

One contact generated by a non-trigger collision.

interface ContactPoint2D

src/runtime/scripting/PhysicsEvents2D.ts:5

Members

normal

property

ContactPoint2D.normal: Vector2

ContactPoint2D.normal runtime value.

point

property

ContactPoint2D.point: Vector2

ContactPoint2D.point runtime value.

separation

property

ContactPoint2D.separation: number

ContactPoint2D.separation runtime value.

Debug class / Core

Writes messages to the game console and the editor Console during Play Mode.

class Debug

src/runtime/scripting/Debug.ts:10

destroy function / Core

Destroys an entity. With no argument, a script destroys its own entity.

destroy(target?: RuntimeEntity): void

src/runtime/scripting/publicApi.ts:102

Dialogue object / Core / 6 members

Drives DialogueBox entities: start/advance a conversation, pick a choice, or end it early. The runtime supplies the active implementation to user scripts.

DialogueApi

src/runtime/scripting/publicApi.ts:61

Members

advance

method

Dialogue.advance(entityId: string): void

Advances past the current line. No-op while the line has choices — pick one with choose() instead.

choose

method

Dialogue.choose(entityId: string, choiceId: string): void

Dialogue.choose runtime operation.

currentLineId

method

Dialogue.currentLineId(entityId: string): string | null

Dialogue.currentLineId runtime operation.

end

method

Dialogue.end(entityId: string): void

Ends the conversation early, destroying any spawned choice buttons and disabling the subtree.

isActive

method

Dialogue.isActive(entityId: string): boolean

Dialogue.isActive runtime operation.

start

method

Dialogue.start(entityId: string): void

Enables the DialogueBox entity's whole subtree and jumps to its startLineId.

DialogueApi interface / Core / 6 members

Public shape of the Dialogue API exposed to scripts.

interface DialogueApi

src/runtime/dialogue/DialogueSystem.ts:14

Members

advance

method

DialogueApi.advance(entityId: string): void

Advances past the current line. No-op while the line has choices — pick one with choose() instead.

choose

method

DialogueApi.choose(entityId: string, choiceId: string): void

DialogueApi.choose runtime operation.

currentLineId

method

DialogueApi.currentLineId(entityId: string): string | null

DialogueApi.currentLineId runtime operation.

end

method

DialogueApi.end(entityId: string): void

Ends the conversation early, destroying any spawned choice buttons and disabling the subtree.

isActive

method

DialogueApi.isActive(entityId: string): boolean

DialogueApi.isActive runtime operation.

start

method

DialogueApi.start(entityId: string): void

Enables the DialogueBox entity's whole subtree and jumps to its startLineId.

DialogueBox object / Core

A linear conversation with optional branching choices, driven by the runtime DialogueSystem.

"DialogueBox"

src/runtime/index.ts:140

DialogueChoice interface / Core / 3 members

One clickable option shown when a DialogueLine has choices instead of a plain continue.

interface DialogueChoice

src/shared/types/components.ts:269

Members

id

property

DialogueChoice.id: string

DialogueChoice.id runtime value.

nextLineId

property

DialogueChoice.nextLineId: string | null

Line to jump to when this choice is picked. Null ends the conversation.

text

property

DialogueChoice.text: string

DialogueChoice.text runtime value.

DialogueLine interface / Core / 5 members

One page of dialogue: who's speaking, the line's text, and how the player moves past it.

interface DialogueLine

src/shared/types/components.ts:277

Members

choices

property

DialogueLine.choices: DialogueChoice[]

Empty means clicking/continuing advances straight to nextLineId instead of showing choice buttons.

id

property

DialogueLine.id: string

DialogueLine.id runtime value.

nextLineId

property

DialogueLine.nextLineId: string | null

Used only when choices is empty. Null ends the conversation.

speaker

property

DialogueLine.speaker: string

Empty string hides the speaker label for this line.

text

property

DialogueLine.text: string

DialogueLine.text runtime value.

EngineComponent type / Core / 2 members

EngineComponent scripting API.

type EngineComponent

src/shared/types/components.ts:514

Members

enabled

property

EngineComponent.enabled: boolean

EngineComponent.enabled runtime value.

type

property

EngineComponent.type: "Transform" | "SpriteRenderer" | "TextRenderer" | "Camera2D" | "Rigidbody2D" | "BoxCollider2D" | "CircleCollider2D" | "CapsuleCollider2D" | "PolygonCollider2D" | "EdgeCollider2D" | "CompositeCollider2D" | "TilemapCollider2D" | "Animator" | "AudioSource" | "Script" | "Tilemap" | "ParticleEmitter" | "ParallaxLayer" | "Light2D" | "UICanvas" | "Anchor" | "UIButton" | "UIHoverAnimation" | "UIPanel" | "DialogueBox"

EngineComponent.type runtime value.

Entity class / Core / 33 members

Represents an object inside the active runtime scene.

class Entity

src/runtime/core/RuntimeEntity.ts:30

Members

active

property

Entity.active: boolean

Alias for {@link enabled}.

addChild

method

Entity.addChild(child: RuntimeEntity): void

Entity.addChild runtime operation.

addComponent

method

Entity.addComponent(component: EngineComponent): void

Adds a component and refreshes runtime systems. Script components may be added more than once.

addTag

method

Entity.addTag(tag: string): void

Adds a unique serializable tag.

children

property

Entity.children: RuntimeEntity[]

Direct child entities in serialized hierarchy order.

clone

method

Entity.clone(): RuntimeEntity

Clones this entity hierarchy into the active scene.

destroy

method

Entity.destroy(): void

Destroys this entity and all of its children.

enabled

property

Entity.enabled: boolean

Whether the entity is enabled in its scene.

events

property

Entity.events: OwnedEvents<Record<string, unknown>>

Local signal bus. Script listeners are automatically removed on destruction.

exists

property

Entity.exists: boolean

Whether this runtime entity still exists in the active scene.

getComponent

method

Entity.getComponent(type: "Animator"): RuntimeAnimator | undefined

Returns the first component of the requested type.

getComponents

method

Entity.getComponents<T extends ComponentType>(type: T): Extract<EngineComponent, { type: T; }>[]

Returns every matching component; omit type to return all components.

getVelocity

method

Entity.getVelocity(): SharedVector2

Returns the current Matter.js body velocity.

hasComponent

method

Entity.hasComponent(type: ComponentType): boolean

Returns whether an engine component is attached.

hasTag

method

Entity.hasTag(tag: string): boolean

Tests whether this entity contains a tag.

id

property

Entity.id: string

Entity.id runtime value.

instantiate

method

Entity.instantiate(template: EntityData | PrefabData, positionOrOptions?: Vector2Like | InstantiateOptions): RuntimeEntity

Creates an independent runtime copy of entity data or a complete prefab hierarchy.

layer

property

Entity.layer: string

Named gameplay/physics layer.

name

property

Entity.name: string

Display name serialized with the entity.

parent

property

Entity.parent: RuntimeEntity | null

Parent entity, or null for a scene root.

playAnimation

method

Entity.playAnimation(clipNameOrId: string): void

Starts an Animator clip by its name or ID without restarting an already-playing clip.

playAudio

method

Entity.playAudio(): void

Starts this entity's enabled AudioSource component.

removeChild

method

Entity.removeChild(child: RuntimeEntity): void

Entity.removeChild runtime operation.

removeComponent

method

Entity.removeComponent(type: ComponentType, componentId?: string): void

Removes components by type. Pass a script component ID to remove only that script instance.

removeTag

method

Entity.removeTag(tag: string): void

Removes a tag when present.

setActive

method

Entity.setActive(active: boolean): void

Enables or disables this entity.

setParent

method

Entity.setParent(parent: RuntimeEntity | null): void

Reparents this entity while preserving its local transform values.

setText

method

Entity.setText(value: string): void

Changes the first TextRenderer attached to this entity.

setVelocity

method

Entity.setVelocity(x: number, y: number): void

Sets the Matter.js body velocity.

stopAnimation

method

Entity.stopAnimation(): void

Stops the animation currently playing on this entity.

teleport

method

Entity.teleport(x: number, y: number): void

Moves this entity immediately while keeping its physics body synchronized.

transform

property

Entity.transform: RuntimeTransform

Transform attached to this entity.

EntityData interface / Core / 9 members

EntityData scripting API.

interface EntityData

src/shared/types/scene.ts:3

Members

children

property

EntityData.children: string[]

EntityData.children runtime value.

components

property

EntityData.components: EngineComponent[]

EntityData.components runtime value.

enabled

property

EntityData.enabled: boolean

EntityData.enabled runtime value.

id

property

EntityData.id: string

EntityData.id runtime value.

layer

property

EntityData.layer: string | undefined

Physics, rendering, and query layer. Defaults to `Default`.

name

property

EntityData.name: string

EntityData.name runtime value.

parentId

property

EntityData.parentId: string | null

EntityData.parentId runtime value.

prefab

property

EntityData.prefab: { prefabId: string; sourceEntityId: string; } | undefined

EntityData.prefab runtime value.

Members

clear

method

EventBus.clear(): void

EventBus.clear runtime operation.

emit

method

EventBus.emit<K extends EventName<TEvents>>(name: K, ...args: EventArgs<TEvents, K>): void

EventBus.emit runtime operation.

off

method

EventBus.off<K extends EventName<TEvents>>(name: K, callback: Listener<TEvents[K]>): void

EventBus.off runtime operation.

on

method

EventBus.on<K extends EventName<TEvents>>(name: K, callback: Listener<TEvents[K]>, ownerId?: string): () => void

EventBus.on runtime operation.

removeOwner

method

EventBus.removeOwner(ownerId: string): void

EventBus.removeOwner runtime operation.

Events object / Core / 3 members

Public global signal placeholder replaced by the active runtime bus in user modules.

EventsApi

src/runtime/events/Events.ts:73

Members

emit

method

Events.emit<K>(name: K, payload?: unknown): void

Invokes current listeners with an optional payload.

off

method

Events.off<K>(name: K, callback: Listener<unknown>): void

Removes matching listener registrations.

on

method

Events.on<K>(name: K, callback: Listener<unknown>): () => void

Registers a listener and returns an unsubscribe callback. Script-owned listeners are cleaned up automatically.

EventsApi type / Core / 3 members

EventsApi scripting API.

type EventsApi

src/runtime/events/Events.ts:57

Members

emit

method

EventsApi.emit<K>(name: K, payload?: unknown): void

Invokes current listeners with an optional payload.

off

method

EventsApi.off<K>(name: K, callback: Listener<unknown>): void

Removes matching listener registrations.

on

method

EventsApi.on<K>(name: K, callback: Listener<unknown>): () => void

Registers a listener and returns an unsubscribe callback. Script-owned listeners are cleaned up automatically.

Game class / Core / 5 members

Game scripting API.

class Game

src/runtime/Game.ts:10

Members

loadProject

method

Game.loadProject(source: string | ProjectData): Promise<void>

Game.loadProject runtime operation.

loadScene

method

Game.loadScene(nameOrId: string): Promise<void>

Game.loadScene runtime operation.

options

property

Game.options: GameOptions

Game.options runtime value.

start

method

Game.start(inputTarget?: HTMLElement): Promise<GameRuntime>

Game.start runtime operation.

stop

method

Game.stop(): void

Game.stop runtime operation.

GameEvents interface / Core

Extend this interface through module augmentation to type global game events.

interface GameEvents

src/runtime/events/Events.ts:2

GameRuntime class / Core / 8 members

GameRuntime scripting API.

class GameRuntime

src/runtime/GameRuntime.ts:32

Members

dispatchUIEvent

method

GameRuntime.dispatchUIEvent(entityId: string, type: "click" | "pointerenter" | "pointerexit" | "focus" | "blur"): void

Forwards a Button interaction from the renderer to scripts and any active dialogue choice buttons.

getScene

method

GameRuntime.getScene(): SceneData

GameRuntime.getScene runtime operation.

loadScene

method

GameRuntime.loadScene(nameOrId: string): void

GameRuntime.loadScene runtime operation.

pause

method

GameRuntime.pause(): void

GameRuntime.pause runtime operation.

resume

method

GameRuntime.resume(): void

GameRuntime.resume runtime operation.

setTouchControlsPreview

method

GameRuntime.setTouchControlsPreview(visible: boolean): void

Force-shows or hides the on-screen touch controls, for editors previewing mobile layout on a desktop pointer.

start

method

GameRuntime.start(inputTarget: HTMLElement): Promise<void>

Loads persisted save data, then boots the first scene. Await this before assuming Save.get returns saved values.

stop

method

GameRuntime.stop(): void

GameRuntime.stop runtime operation.

GridCell interface / Core / 2 members

GridCell scripting API.

interface GridCell

src/engine/navigation/GridPathfinding.ts:1

Members

x

property

GridCell.x: number

GridCell.x runtime value.

y

property

GridCell.y: number

GridCell.y runtime value.

instantiate function / Core

Creates a runtime entity or prefab hierarchy with optional transform and parent overrides.

instantiate(template: EntityData | PrefabData, position?: Vector2 | InstantiateOptions): RuntimeEntity

src/runtime/scripting/publicApi.ts:95

InstantiateOptions interface / Core / 3 members

InstantiateOptions scripting API.

interface InstantiateOptions

src/runtime/core/RuntimeEntity.ts:10

Members

parent

property

InstantiateOptions.parent: RuntimeEntity | null | undefined

InstantiateOptions.parent runtime value.

position

property

InstantiateOptions.position: Vector2Like | undefined

InstantiateOptions.position runtime value.

rotation

property

InstantiateOptions.rotation: number | undefined

InstantiateOptions.rotation runtime value.

Math2D object / Core / 9 members

Allocation-free scalar math helpers for common 2D gameplay calculations.

{ clamp(value: number, min: number, max: number): number; lerp(a: number, b: number, t: number): number; inverseLerp(a: number, b: number, value: number): number; moveTowards(current: number, target: number, maxDelta: number): number; repeat(value: number, length: number): number; pingPong(value: number, length: number): number; degToRad(degrees: number): number; radToDeg(radians: number): number; approximately(a: number, b: number, epsilon?: number): boolean; }

src/runtime/math/Math2D.ts:2

Members

approximately

method

Math2D.approximately(a: number, b: number, epsilon?: number): boolean

Compares floating-point values with a relative tolerance.

clamp

method

Math2D.clamp(value: number, min: number, max: number): number

Constrains a scalar to an inclusive range.

degToRad

method

Math2D.degToRad(degrees: number): number

Converts degrees to radians.

inverseLerp

method

Math2D.inverseLerp(a: number, b: number, value: number): number

Returns the interpolation factor of value between a and b.

lerp

method

Math2D.lerp(a: number, b: number, t: number): number

Linearly interpolates without clamping t.

moveTowards

method

Math2D.moveTowards(current: number, target: number, maxDelta: number): number

Moves a scalar toward a target by no more than maxDelta.

pingPong

method

Math2D.pingPong(value: number, length: number): number

Oscillates a value between zero and length.

radToDeg

method

Math2D.radToDeg(radians: number): number

Converts radians to degrees.

repeat

method

Math2D.repeat(value: number, length: number): number

Wraps a value into the range 0..length.

Navigation object / Core / 4 members

Tilemap A* pathfinding. The runtime supplies the active scene implementation to user scripts.

NavigationApi

src/runtime/scripting/publicApi.ts:84

Members

cellToWorld

method

Navigation.cellToWorld(tilemapEntity: RuntimeEntity, cell: GridCell): Vector2

Navigation.cellToWorld runtime operation.

findPath

method

Navigation.findPath(tilemapEntity: RuntimeEntity, startWorld: Vector2Like, goalWorld: Vector2Like, options?: NavigationPathOptions): Vector2[]

Finds an A* path across a Tilemap and returns world-space cell centers.

isWalkable

method

Navigation.isWalkable(tilemapEntity: RuntimeEntity, worldPosition: Vector2Like, options?: NavigationPathOptions): boolean

Returns whether one world position is inside a non-collision tilemap cell.

worldToCell

method

Navigation.worldToCell(tilemapEntity: RuntimeEntity, worldPosition: Vector2Like): GridCell

Navigation.worldToCell runtime operation.

NavigationApi interface / Core / 4 members

NavigationApi scripting API.

interface NavigationApi

src/runtime/navigation/Navigation.ts:13

Members

cellToWorld

method

NavigationApi.cellToWorld(tilemapEntity: RuntimeEntity, cell: GridCell): Vector2

NavigationApi.cellToWorld runtime operation.

findPath

method

NavigationApi.findPath(tilemapEntity: RuntimeEntity, startWorld: Vector2Like, goalWorld: Vector2Like, options?: NavigationPathOptions): Vector2[]

Finds an A* path across a Tilemap and returns world-space cell centers.

isWalkable

method

NavigationApi.isWalkable(tilemapEntity: RuntimeEntity, worldPosition: Vector2Like, options?: NavigationPathOptions): boolean

Returns whether one world position is inside a non-collision tilemap cell.

worldToCell

method

NavigationApi.worldToCell(tilemapEntity: RuntimeEntity, worldPosition: Vector2Like): GridCell

NavigationApi.worldToCell runtime operation.

NavigationPathOptions interface / Core / 3 members

NavigationPathOptions scripting API.

interface NavigationPathOptions

src/runtime/navigation/Navigation.ts:6

Members

allowDiagonal

property

NavigationPathOptions.allowDiagonal: boolean | undefined

NavigationPathOptions.allowDiagonal runtime value.

collisionLayerIds

property

NavigationPathOptions.collisionLayerIds: string[] | undefined

Collision layer IDs used as blocked cells. Empty uses layers whose collision flag is enabled.

maxVisited

property

NavigationPathOptions.maxVisited: number | undefined

NavigationPathOptions.maxVisited runtime value.

OwnedEvents interface / Core / 3 members

OwnedEvents scripting API.

interface OwnedEvents

src/runtime/events/Events.ts:42

Members

emit

method

OwnedEvents.emit<K extends EventName<TEvents>>(name: K, ...args: EventArgs<TEvents, K>): void

Invokes current listeners with an optional payload.

off

method

OwnedEvents.off<K extends EventName<TEvents>>(name: K, callback: Listener<TEvents[K]>): void

Removes matching listener registrations.

on

method

OwnedEvents.on<K extends EventName<TEvents>>(name: K, callback: Listener<TEvents[K]>): () => void

Registers a listener and returns an unsubscribe callback. Script-owned listeners are cleaned up automatically.

ProjectData interface / Core / 12 members

ProjectData scripting API.

interface ProjectData

src/shared/types/project.ts:93

Members

activeSceneId

property

ProjectData.activeSceneId: string

ProjectData.activeSceneId runtime value.

animations

property

ProjectData.animations: AnimationClip[]

ProjectData.animations runtime value.

animatorControllers

property

ProjectData.animatorControllers: AnimatorController[]

ProjectData.animatorControllers runtime value.

assetFolders

property

ProjectData.assetFolders: AssetFolder[] | undefined

Virtual folders shown in the Asset Browser. Optional for backwards-compatible project files.

assets

property

ProjectData.assets: AssetData[]

ProjectData.assets runtime value.

id

property

ProjectData.id: string

ProjectData.id runtime value.

input

property

ProjectData.input: InputConfiguration

ProjectData.input runtime value.

name

property

ProjectData.name: string

ProjectData.name runtime value.

prefabs

property

ProjectData.prefabs: PrefabData[]

ProjectData.prefabs runtime value.

scenes

property

ProjectData.scenes: SceneData[]

ProjectData.scenes runtime value.

schemaVersion

property

ProjectData.schemaVersion: 1

ProjectData.schemaVersion runtime value.

settings

property

ProjectData.settings: ProjectSettings

ProjectData.settings runtime value.

property function / Core

Marks a script field as editable through the Inspector.

property(options?: PropertyOptions): PropertyDecorator

src/runtime/scripting/property.ts:15

PropertyOptions interface / Core / 6 members

PropertyOptions scripting API.

interface PropertyOptions

src/runtime/scripting/property.ts:3

Members

label

property

PropertyOptions.label: string | undefined

PropertyOptions.label runtime value.

max

property

PropertyOptions.max: number | undefined

PropertyOptions.max runtime value.

min

property

PropertyOptions.min: number | undefined

PropertyOptions.min runtime value.

options

property

PropertyOptions.options: string[] | undefined

PropertyOptions.options runtime value.

step

property

PropertyOptions.step: number | undefined

PropertyOptions.step runtime value.

type

property

PropertyOptions.type: ScriptPropertyKind | undefined

PropertyOptions.type runtime value.

RuntimeEntity class / Core / 33 members

Represents an object inside the active runtime scene.

class RuntimeEntity

src/runtime/core/RuntimeEntity.ts:30

Members

active

property

RuntimeEntity.active: boolean

Alias for {@link enabled}.

addChild

method

RuntimeEntity.addChild(child: RuntimeEntity): void

RuntimeEntity.addChild runtime operation.

addComponent

method

RuntimeEntity.addComponent(component: EngineComponent): void

Adds a component and refreshes runtime systems. Script components may be added more than once.

addTag

method

RuntimeEntity.addTag(tag: string): void

Adds a unique serializable tag.

children

property

RuntimeEntity.children: RuntimeEntity[]

Direct child entities in serialized hierarchy order.

clone

method

RuntimeEntity.clone(): RuntimeEntity

Clones this entity hierarchy into the active scene.

destroy

method

RuntimeEntity.destroy(): void

Destroys this entity and all of its children.

enabled

property

RuntimeEntity.enabled: boolean

Whether the entity is enabled in its scene.

events

property

RuntimeEntity.events: OwnedEvents<Record<string, unknown>>

Local signal bus. Script listeners are automatically removed on destruction.

exists

property

RuntimeEntity.exists: boolean

Whether this runtime entity still exists in the active scene.

getComponent

method

RuntimeEntity.getComponent(type: "Animator"): RuntimeAnimator | undefined

Returns the first component of the requested type.

getComponents

method

RuntimeEntity.getComponents<T extends ComponentType>(type: T): Extract<EngineComponent, { type: T; }>[]

Returns every matching component; omit type to return all components.

getVelocity

method

RuntimeEntity.getVelocity(): SharedVector2

Returns the current Matter.js body velocity.

hasComponent

method

RuntimeEntity.hasComponent(type: ComponentType): boolean

Returns whether an engine component is attached.

hasTag

method

RuntimeEntity.hasTag(tag: string): boolean

Tests whether this entity contains a tag.

id

property

RuntimeEntity.id: string

RuntimeEntity.id runtime value.

instantiate

method

RuntimeEntity.instantiate(template: EntityData | PrefabData, positionOrOptions?: Vector2Like | InstantiateOptions): RuntimeEntity

Creates an independent runtime copy of entity data or a complete prefab hierarchy.

layer

property

RuntimeEntity.layer: string

Named gameplay/physics layer.

name

property

RuntimeEntity.name: string

Display name serialized with the entity.

parent

property

RuntimeEntity.parent: RuntimeEntity | null

Parent entity, or null for a scene root.

playAnimation

method

RuntimeEntity.playAnimation(clipNameOrId: string): void

Starts an Animator clip by its name or ID without restarting an already-playing clip.

playAudio

method

RuntimeEntity.playAudio(): void

Starts this entity's enabled AudioSource component.

removeChild

method

RuntimeEntity.removeChild(child: RuntimeEntity): void

RuntimeEntity.removeChild runtime operation.

removeComponent

method

RuntimeEntity.removeComponent(type: ComponentType, componentId?: string): void

Removes components by type. Pass a script component ID to remove only that script instance.

removeTag

method

RuntimeEntity.removeTag(tag: string): void

Removes a tag when present.

setActive

method

RuntimeEntity.setActive(active: boolean): void

Enables or disables this entity.

setParent

method

RuntimeEntity.setParent(parent: RuntimeEntity | null): void

Reparents this entity while preserving its local transform values.

setText

method

RuntimeEntity.setText(value: string): void

Changes the first TextRenderer attached to this entity.

setVelocity

method

RuntimeEntity.setVelocity(x: number, y: number): void

Sets the Matter.js body velocity.

stopAnimation

method

RuntimeEntity.stopAnimation(): void

Stops the animation currently playing on this entity.

teleport

method

RuntimeEntity.teleport(x: number, y: number): void

Moves this entity immediately while keeping its physics body synchronized.

transform

property

RuntimeEntity.transform: RuntimeTransform

Transform attached to this entity.

RuntimeTransform class / Core / 12 members

Live transform view for a runtime entity. Rotation is always measured clockwise in degrees.

class RuntimeTransform

src/runtime/core/RuntimeTransform.ts:7

Members

localPosition

property

RuntimeTransform.localPosition: Vector2

RuntimeTransform.localPosition runtime value.

localRotation

property

RuntimeTransform.localRotation: number

RuntimeTransform.localRotation runtime value.

localScale

property

RuntimeTransform.localScale: Vector2

RuntimeTransform.localScale runtime value.

localToWorld

method

RuntimeTransform.localToWorld(point: Vector2Like): Vector2

RuntimeTransform.localToWorld runtime operation.

lookAt

method

RuntimeTransform.lookAt(worldTarget: Vector2Like): void

RuntimeTransform.lookAt runtime operation.

parent

property

RuntimeTransform.parent: RuntimeTransform | null

RuntimeTransform.parent runtime value.

position

property

RuntimeTransform.position: Vector2

World position. Setting it converts through the parent transform.

rotate

method

RuntimeTransform.rotate(degrees: number): void

RuntimeTransform.rotate runtime operation.

rotation

property

RuntimeTransform.rotation: number

RuntimeTransform.rotation runtime value.

scale

property

RuntimeTransform.scale: Vector2

RuntimeTransform.scale runtime value.

translate

method

RuntimeTransform.translate(offset: Vector2Like, local?: boolean): void

RuntimeTransform.translate runtime operation.

worldToLocal

method

RuntimeTransform.worldToLocal(point: Vector2Like): Vector2

RuntimeTransform.worldToLocal runtime operation.

Script class / Core / 21 members

Base class for user-authored gameplay scripts. Lifecycle for a new enabled instance: `awake → onEnable → start → update / fixedUpdate`. `awake` and `start` run exactly once per instance. Re-enabling calls `onEnable` again without repeating `start`. Disabling calls `onDisable`; removal or scene shutdown calls `onDisable` when active, followed by `onDestroy`.

class Script

src/runtime/scripting/Script.ts:115

Members

awake

method

Script.awake(): void

Called once immediately after the script is created and bound.

entity

property

Script.entity: RuntimeEntity

Script.entity runtime value.

events

property

Script.events: OwnedEvents<Record<string, unknown>>

Script-owned global listeners are removed automatically during onDestroy.

fixedUpdate

method

Script.fixedUpdate(delta: number): void

Called at a fixed timestep before each physics step.

game

property

Script.game: RuntimeGameContext

Pause and resume controls for the current game runtime.

input

property

Script.input: InputReader

Input actions configured by the current project.

onAnimationEvent

method

Script.onAnimationEvent(event: AnimationEvent): void

Called when the active AnimationClip crosses an authored event marker. Events fire on every matching loop and on both directions of ping-pong playback.

onCollisionEnter

method

Script.onCollisionEnter(event: CollisionEvent2D): void

Called on the first physics step that touches another non-trigger collider.

onCollisionExit

method

Script.onCollisionExit(event: CollisionEvent2D): void

Called after contact with another non-trigger collider ends.

onCollisionStay

method

Script.onCollisionStay(event: CollisionEvent2D): void

Called on physics steps while touching another non-trigger collider.

onDestroy

method

Script.onDestroy(): void

Called once immediately before the script instance is discarded.

onDisable

method

Script.onDisable(): void

Called when the script transitions from enabled to disabled.

onEnable

method

Script.onEnable(): void

Called whenever the script transitions from disabled to enabled.

onTriggerEnter

method

Script.onTriggerEnter(event: TriggerEvent2D): void

Called on the first physics step that overlaps a trigger collider.

onTriggerExit

method

Script.onTriggerExit(event: TriggerEvent2D): void

Called after overlap with a trigger collider ends.

onTriggerStay

method

Script.onTriggerStay(event: TriggerEvent2D): void

Called on physics steps while overlapping a trigger collider.

sceneManager

property

Script.sceneManager: RuntimeSceneManager

Scene loading API for the current game.

start

method

Script.start(): void

Called once before the first update, after the first onEnable call.

timer

property

Script.timer: { after(seconds: number, callback: () => void, options?: TimerOptions): TimerHandle; every(seconds: number, callback: () => void, options?: TimerOptions): TimerHandle; cancel(handle: TimerHandle): void; pause(handle: TimerHandle): void; resume(handle: TimerHandle): void; }

Script-owned timers are cancelled automatically during onDestroy.

transform

property

Script.transform: RuntimeTransform

Shortcut for `entity.transform`.

update

method

Script.update(delta: number): void

Called once per rendered frame while the script is enabled.

TextRenderer object / Core

Mutable text component used by HUD, menus, labels, and dialog. Component token for dynamic text rendered by PixiJS.

"TextRenderer"

src/runtime/index.ts:134

Time object / Core / 7 members

Public clock placeholder replaced with the active game's clock in user modules.

TimeApi

src/runtime/time/Time.ts:42

Members

deltaTime

property

Time.deltaTime: number

Scaled duration of the current frame in seconds.

elapsed

property

Time.elapsed: number

Total scaled runtime duration.

fixedDeltaTime

property

Time.fixedDeltaTime: number

Fixed physics timestep in seconds.

frameCount

property

Time.frameCount: number

Number of rendered runtime frames.

timeScale

property

Time.timeScale: number

Global gameplay speed. Set to zero to pause scaled gameplay.

unscaledDeltaTime

property

Time.unscaledDeltaTime: number

Real duration of the current frame, unaffected by timeScale.

unscaledElapsed

property

Time.unscaledElapsed: number

Total real runtime duration.

TimeApi interface / Core / 7 members

Public runtime clock. Durations are expressed in seconds; scaled values honor {@link timeScale}.

interface TimeApi

src/runtime/time/Time.ts:2

Members

deltaTime

property

TimeApi.deltaTime: number

Scaled duration of the current frame in seconds.

elapsed

property

TimeApi.elapsed: number

Total scaled runtime duration.

fixedDeltaTime

property

TimeApi.fixedDeltaTime: number

Fixed physics timestep in seconds.

frameCount

property

TimeApi.frameCount: number

Number of rendered runtime frames.

timeScale

property

TimeApi.timeScale: number

Global gameplay speed. Set to zero to pause scaled gameplay.

unscaledDeltaTime

property

TimeApi.unscaledDeltaTime: number

Real duration of the current frame, unaffected by timeScale.

unscaledElapsed

property

TimeApi.unscaledElapsed: number

Total real runtime duration.

Timer object / Core / 5 members

Public timer placeholder replaced with the active game's scheduler in user modules.

TimerApi

src/runtime/time/Timer.ts:69

Members

after

method

Timer.after(seconds: number, callback: () => void, options?: TimerOptions): TimerHandle

Runs callback once after a duration. Uses scaled time unless `unscaled` is true.

cancel

method

Timer.cancel(handle: TimerHandle): void

Permanently cancels a timer handle.

every

method

Timer.every(seconds: number, callback: () => void, options?: TimerOptions): TimerHandle

Repeats callback at an interval. Uses scaled time unless `unscaled` is true.

pause

method

Timer.pause(handle: TimerHandle): void

Suspends a timer without resetting its remaining duration.

resume

method

Timer.resume(handle: TimerHandle): void

Continues a paused timer.

TimerApi interface / Core / 5 members

TimerApi scripting API.

interface TimerApi

src/runtime/time/Timer.ts:3

Members

after

method

TimerApi.after(seconds: number, callback: () => void, options?: TimerOptions): TimerHandle

Runs callback once after a duration. Uses scaled time unless `unscaled` is true.

cancel

method

TimerApi.cancel(handle: TimerHandle): void

Permanently cancels a timer handle.

every

method

TimerApi.every(seconds: number, callback: () => void, options?: TimerOptions): TimerHandle

Repeats callback at an interval. Uses scaled time unless `unscaled` is true.

pause

method

TimerApi.pause(handle: TimerHandle): void

Suspends a timer without resetting its remaining duration.

resume

method

TimerApi.resume(handle: TimerHandle): void

Continues a paused timer.

TimerHandle interface / Core / 1 members

TimerHandle scripting API.

interface TimerHandle

src/runtime/time/Timer.ts:1

Members

id

property

TimerHandle.id: number

TimerHandle.id runtime value.

TimerOptions interface / Core / 1 members

TimerOptions scripting API.

interface TimerOptions

src/runtime/time/Timer.ts:2

Members

unscaled

property

TimerOptions.unscaled: boolean | undefined

TimerOptions.unscaled runtime value.

TouchControl type / Core

Semantic controls produced by Kriya's mobile virtual stick and action buttons. "left"/"right"/"up"/"down" are reserved for the stick; any other string is a custom button's `id`.

type TouchControl

src/shared/types/project.ts:39

Transform interface / Core / 5 members

Stores local position, rotation, and scale for every entity.

interface Transform

src/shared/types/components.ts:39

Members

enabled

property

Transform.enabled: boolean

Transform.enabled runtime value.

position

property

Transform.position: Vector2

Local position relative to the parent entity.

rotation

property

Transform.rotation: number

Local clockwise rotation in degrees.

scale

property

Transform.scale: Vector2

Local horizontal and vertical scale.

type

property

Transform.type: "Transform"

Transform.type runtime value.

TriggerEvent2D class / Core / 18 members

Detailed trigger overlap callback data. Extends the other collider for backward compatibility.

class TriggerEvent2D

src/runtime/scripting/PhysicsEvents2D.ts:20

Members

component

property

TriggerEvent2D.component: Collider2DComponent

TriggerEvent2D.component runtime value.

containsPoint

method

TriggerEvent2D.containsPoint(point: Vector2Like): boolean

Tests a world-space point against this collider's exact engine shape.

enabled

property

TriggerEvent2D.enabled: boolean

TriggerEvent2D.enabled runtime value.

entity

property

TriggerEvent2D.entity: RuntimeEntity

TriggerEvent2D.entity runtime value.

getBounds

method

TriggerEvent2D.getBounds(): Bounds2D

Returns a world-axis-aligned bounding box.

getClosestPoint

method

TriggerEvent2D.getClosestPoint(point: Vector2Like): Vector2

Returns the closest point on or inside the collider in world space.

id

property

TriggerEvent2D.id: string

TriggerEvent2D.id runtime value.

isTrigger

property

TriggerEvent2D.isTrigger: boolean

TriggerEvent2D.isTrigger runtime value.

layer

property

TriggerEvent2D.layer: string

Collider filtering uses its owning entity's project layer.

material

property

TriggerEvent2D.material: PhysicsMaterial2D | null

Physics material asset ID. Material assets are introduced in Collider Phase 2.

name

property

TriggerEvent2D.name: string

TriggerEvent2D.name runtime value.

offset

property

TriggerEvent2D.offset: Vector2

TriggerEvent2D.offset runtime value.

oneWay

property

TriggerEvent2D.oneWay: boolean

TriggerEvent2D.oneWay runtime value.

oneWayDirection

property

TriggerEvent2D.oneWayDirection: Vector2

Local direction of the solid face for one-way collision handling.

oneWayTolerance

property

TriggerEvent2D.oneWayTolerance: number

Positional tolerance in world units used near a one-way surface.

otherCollider

property

TriggerEvent2D.otherCollider: Collider2D

TriggerEvent2D.otherCollider runtime value.

otherEntity

property

TriggerEvent2D.otherEntity: RuntimeEntity

TriggerEvent2D.otherEntity runtime value.

selfCollider

property

TriggerEvent2D.selfCollider: Collider2D

TriggerEvent2D.selfCollider runtime value.

UIButton object / Core

A clickable UI element with configurable animated interaction feedback.

"UIButton"

src/runtime/index.ts:137

UICanvas object / Core

Marks the root of a screen-space UI hierarchy (a HUD, menu, or dialog).

"UICanvas"

src/runtime/index.ts:135

UIPanel object / Core

A non-visual layout container that arranges Anchor'd children in a row or column.

"UIPanel"

src/runtime/index.ts:139

Vector2 class / Core / 14 members

Mutable two-dimensional vector used by the public scripting API.

class Vector2

src/runtime/math/Vector2.ts:4

Members

add

method

Vector2.add(value: Vector2Like): Vector2

Adds a vector in place.

clone

method

Vector2.clone(): Vector2

Returns an independent copy.

divide

method

Vector2.divide(value: number | Vector2Like): Vector2

Divides by a scalar or component-wise vector in place. Zero divisors produce zero.

equals

method

Vector2.equals(other: Vector2Like, epsilon?: number): boolean

Compares components within an optional epsilon.

length

property

Vector2.length: number

Vector2.length runtime value.

lengthSquared

property

Vector2.lengthSquared: number

Vector2.lengthSquared runtime value.

multiply

method

Vector2.multiply(value: number | Vector2Like): Vector2

Multiplies by a scalar or component-wise vector in place.

normalize

method

Vector2.normalize(): Vector2

Normalizes this vector in place.

normalized

property

Vector2.normalized: Vector2

Vector2.normalized runtime value.

set

method

Vector2.set(x: number, y: number): Vector2

Vector2.set runtime operation.

subtract

method

Vector2.subtract(value: Vector2Like): Vector2

Subtracts a vector in place.

toJSON

method

Vector2.toJSON(): Vector2Like

Vector2.toJSON runtime operation.

x

property

Vector2.x: number

Vector2.x runtime value.

y

property

Vector2.y: number

Vector2.y runtime value.

Vector2Like interface / Core / 2 members

Vector2Like scripting API.

interface Vector2Like

src/runtime/math/Vector2.ts:1

Members

x

property

Vector2Like.x: number

Vector2Like.x runtime value.

y

property

Vector2Like.y: number

Vector2Like.y runtime value.

PrefabData interface / Scene / 5 members

PrefabData scripting API.

interface PrefabData

src/shared/types/prefab.ts:3

Members

entities

property

PrefabData.entities: EntityData[]

PrefabData.entities runtime value.

id

property

PrefabData.id: string

PrefabData.id runtime value.

name

property

PrefabData.name: string

PrefabData.name runtime value.

rootEntityId

property

PrefabData.rootEntityId: string

PrefabData.rootEntityId runtime value.

schemaVersion

property

PrefabData.schemaVersion: 1

PrefabData.schemaVersion runtime value.

Scene object / Scene / 6 members

Public placeholder replaced with queries for the active runtime scene in user modules.

SceneQuery

src/runtime/scene/SceneQuery.ts:36

Members

findAllByTag

method

Scene.findAllByTag(tag: string, options?: SceneQueryOptions): RuntimeEntity[]

Returns all entities carrying a tag, optionally filtered by layer.

findAllWithComponent

method

Scene.findAllWithComponent<T>(type: ComponentQuery<T>, options?: SceneQueryOptions): RuntimeEntity[]

Returns all entities with an engine component token or user Script class.

findById

method

Scene.findById(id: string): RuntimeEntity | null

Finds an entity by its stable serialized ID.

findByName

method

Scene.findByName(name: string): RuntimeEntity | null

Finds the first enabled or disabled entity with an exact display name.

findByTag

method

Scene.findByTag(tag: string, options?: SceneQueryOptions): RuntimeEntity | null

Finds the first entity carrying a tag. Cache this result instead of querying every update.

findWithComponent

method

Scene.findWithComponent<T>(type: ComponentQuery<T>, options?: SceneQueryOptions): RuntimeEntity | null

Finds the first entity with an engine component token or user Script class.

SceneData interface / Scene / 6 members

SceneData scripting API.

interface SceneData

src/shared/types/scene.ts:27

Members

entities

property

SceneData.entities: EntityData[]

SceneData.entities runtime value.

id

property

SceneData.id: string

SceneData.id runtime value.

name

property

SceneData.name: string

SceneData.name runtime value.

rootEntityIds

property

SceneData.rootEntityIds: string[]

SceneData.rootEntityIds runtime value.

schemaVersion

property

SceneData.schemaVersion: 1

SceneData.schemaVersion runtime value.

settings

property

SceneData.settings: SceneSettings | undefined

SceneData.settings runtime value.

SceneManager object / Scene / 3 members

Loads and inspects scenes in the active game runtime.

RuntimeSceneManager

src/runtime/scripting/publicApi.ts:39

Members

getActiveScene

method

SceneManager.getActiveScene(): SceneData

Returns the active mutable runtime scene.

loadScene

method

SceneManager.loadScene(nameOrId: string): void

Queues a scene by name or ID for loading before the next frame.

reloadScene

method

SceneManager.reloadScene(): void

Reloads the active scene from its serialized project data.

SceneQuery class / Scene / 6 members

Convenience queries over the active scene. Cache results instead of repeating broad queries every update.

class SceneQuery

src/runtime/scene/SceneQuery.ts:10

Members

findAllByTag

method

SceneQuery.findAllByTag(tag: string, options?: SceneQueryOptions): RuntimeEntity[]

Returns all entities carrying a tag, optionally filtered by layer.

findAllWithComponent

method

SceneQuery.findAllWithComponent<T>(type: ComponentQuery<T>, options?: SceneQueryOptions): RuntimeEntity[]

Returns all entities with an engine component token or user Script class.

findById

method

SceneQuery.findById(id: string): RuntimeEntity | null

Finds an entity by its stable serialized ID.

findByName

method

SceneQuery.findByName(name: string): RuntimeEntity | null

Finds the first enabled or disabled entity with an exact display name.

findByTag

method

SceneQuery.findByTag(tag: string, options?: SceneQueryOptions): RuntimeEntity | null

Finds the first entity carrying a tag. Cache this result instead of querying every update.

findWithComponent

method

SceneQuery.findWithComponent<T>(type: ComponentQuery<T>, options?: SceneQueryOptions): RuntimeEntity | null

Finds the first entity with an engine component token or user Script class.

SceneQueryOptions interface / Scene / 1 members

SceneQueryOptions scripting API.

interface SceneQueryOptions

src/runtime/scene/SceneQuery.ts:5

Members

layerMask

property

SceneQueryOptions.layerMask: LayerMask | undefined

SceneQueryOptions.layerMask runtime value.

Input object / Input / 17 members

Reads project input actions. The runtime supplies the active implementation to user scripts.

InputApi

src/runtime/scripting/publicApi.ts:16

Members

gamepadConnected

method

Input.gamepadConnected(index: number): boolean

Returns whether a browser gamepad slot is connected.

getAxis

method

Input.getAxis(actionName: string): number

Returns a configured/conventional axis, or -1..1 from a negative/positive action pair.

getGamepadAxis

method

Input.getGamepadAxis(index: number, axis: number): number

Reads a gamepad axis in the range -1 through 1.

getGamepadButton

method

Input.getGamepadButton(index: number, button: number): boolean

Returns whether a gamepad button is currently pressed.

getGamepadButtonDown

method

Input.getGamepadButtonDown(index: number, button: number): boolean

Input.getGamepadButtonDown runtime operation.

getGamepadButtonUp

method

Input.getGamepadButtonUp(index: number, button: number): boolean

Input.getGamepadButtonUp runtime operation.

isJustPressed

method

Input.isJustPressed(actionName: string): boolean

Returns true only on the frame an input action begins.

isJustReleased

method

Input.isJustReleased(actionName: string): boolean

Returns true only on the frame an input action ends.

isPressed

method

Input.isPressed(actionName: string): boolean

Returns true while an input action is held.

mouseButton

method

Input.mouseButton(button: number): boolean

Returns true while a zero-based mouse button is held.

mouseButtonDown

method

Input.mouseButtonDown(button: number): boolean

Returns true only on the frame a mouse button is pressed.

mouseButtonUp

method

Input.mouseButtonUp(button: number): boolean

Returns true only on the frame a mouse button is released.

mousePosition

property

Input.mousePosition: SharedVector2

Pointer position relative to the game viewport in screen pixels.

mouseWorldPosition

property

Input.mouseWorldPosition: SharedVector2

Pointer position converted through the primary runtime camera.

touchControl

method

Input.touchControl(control: TouchControl): boolean

Reads one semantic virtual-stick or mobile action control.

touches

property

Input.touches: readonly SharedVector2[]

Active touch positions relative to the game viewport.

touchStick

property

Input.touchStick: SharedVector2

Current virtual analog stick drag, each axis in -1..1. Zero when no stick touch is active.

InputBinding type / Input / 1 members

InputBinding scripting API.

type InputBinding

src/shared/types/project.ts:31

Members

kind

property

InputBinding.kind: "key" | "mouse" | "gamepad-button" | "gamepad-axis" | "touch"

InputBinding.kind runtime value.

InputConfiguration interface / Input / 3 members

InputConfiguration scripting API.

interface InputConfiguration

src/shared/types/project.ts:85

Members

actions

property

InputConfiguration.actions: InputActionDefinition[]

InputConfiguration.actions runtime value.

deviceBindingsVersion

property

InputConfiguration.deviceBindingsVersion: 1 | undefined

Migration marker so user-removed gamepad/touch bindings are not recreated on every load.

touchControls

property

InputConfiguration.touchControls: TouchControlsSettings | undefined

On-screen virtual stick/button layout for touch devices. Filled in with defaults by withDefaultDeviceBindings when absent.

BoxCollider2D object / Physics

Best for walls, platforms, boxes, and simple rectangular props.

"BoxCollider2D"

src/runtime/index.ts:116

CapsuleCollider2D object / Physics

Best for player characters, NPCs, and enemies.

"CapsuleCollider2D"

src/runtime/index.ts:120

CapsuleQueryOptions interface / Physics / 4 members

CapsuleQueryOptions scripting API.

interface CapsuleQueryOptions

src/runtime/physics/Physics2D.ts:10

Members

direction

property

CapsuleQueryOptions.direction: "vertical" | "horizontal" | undefined

CapsuleQueryOptions.direction runtime value.

includeTriggers

property

CapsuleQueryOptions.includeTriggers: boolean | undefined

CapsuleQueryOptions.includeTriggers runtime value.

layerMask

property

CapsuleQueryOptions.layerMask: LayerMask | undefined

CapsuleQueryOptions.layerMask runtime value.

rotation

property

CapsuleQueryOptions.rotation: number | undefined

CapsuleQueryOptions.rotation runtime value.

CircleCollider2D object / Physics

Best for balls, circular objects, and inexpensive detection areas.

"CircleCollider2D"

src/runtime/index.ts:118

Collider2D class / Physics / 15 members

Backend-independent collider view used by scripts, queries, and physics callbacks.

class Collider2D

src/runtime/scripting/Collider2D.ts:13

Members

component

property

Collider2D.component: Collider2DComponent

Collider2D.component runtime value.

containsPoint

method

Collider2D.containsPoint(point: Vector2Like): boolean

Tests a world-space point against this collider's exact engine shape.

enabled

property

Collider2D.enabled: boolean

Collider2D.enabled runtime value.

entity

property

Collider2D.entity: RuntimeEntity

Collider2D.entity runtime value.

getBounds

method

Collider2D.getBounds(): Bounds2D

Returns a world-axis-aligned bounding box.

getClosestPoint

method

Collider2D.getClosestPoint(point: Vector2Like): Vector2

Returns the closest point on or inside the collider in world space.

id

property

Collider2D.id: string

Collider2D.id runtime value.

isTrigger

property

Collider2D.isTrigger: boolean

Collider2D.isTrigger runtime value.

layer

property

Collider2D.layer: string

Collider filtering uses its owning entity's project layer.

material

property

Collider2D.material: PhysicsMaterial2D | null

Physics material asset ID. Material assets are introduced in Collider Phase 2.

name

property

Collider2D.name: string

Collider2D.name runtime value.

offset

property

Collider2D.offset: Vector2

Collider2D.offset runtime value.

oneWay

property

Collider2D.oneWay: boolean

Collider2D.oneWay runtime value.

oneWayDirection

property

Collider2D.oneWayDirection: Vector2

Local direction of the solid face for one-way collision handling.

oneWayTolerance

property

Collider2D.oneWayTolerance: number

Positional tolerance in world units used near a one-way surface.

CompositeCollider2D object / Physics

Combines several simple shapes under one collider identity.

"CompositeCollider2D"

src/runtime/index.ts:126

CompositeColliderShape2D type / Physics / 6 members

CompositeColliderShape2D scripting API.

type CompositeColliderShape2D

src/shared/types/components.ts:417

Members

enabled

property

CompositeColliderShape2D.enabled: boolean

CompositeColliderShape2D.enabled runtime value.

id

property

CompositeColliderShape2D.id: string

CompositeColliderShape2D.id runtime value.

name

property

CompositeColliderShape2D.name: string

CompositeColliderShape2D.name runtime value.

offset

property

CompositeColliderShape2D.offset: Vector2

CompositeColliderShape2D.offset runtime value.

rotation

property

CompositeColliderShape2D.rotation: number

Clockwise local rotation in degrees.

type

property

CompositeColliderShape2D.type: "box" | "circle" | "capsule" | "polygon"

CompositeColliderShape2D.type runtime value.

EdgeCollider2D object / Physics

Best for terrain surfaces, ground contours, and open level boundaries.

"EdgeCollider2D"

src/runtime/index.ts:124

LayerMask class / Physics / 2 members

Immutable collection of entity layer names used by physics and scene queries.

class LayerMask

src/runtime/physics/LayerMask.ts:2

Members

includes

method

LayerMask.includes(layer: string): boolean

Returns whether the mask contains a layer.

toArray

method

LayerMask.toArray(): string[]

LayerMask.toArray runtime operation.

Physics2D object / Physics / 10 members

Public placeholder replaced with the active runtime physics query API in user modules.

Physics2DApi

src/runtime/physics/Physics2D.ts:66

Members

boxCast

method

Physics2D.boxCast(origin: Vector2Like, size: Vector2Like, direction: Vector2Like, options?: ShapeCastOptions): RaycastHit2D | null

Sweeps a box using the backend's conservative native-width query.

capsuleCast

method

Physics2D.capsuleCast(origin: Vector2Like, size: Vector2Like, direction: Vector2Like, options?: ShapeCastOptions): RaycastHit2D | null

Sweeps a capsule using its minor axis as the query width.

circleCast

method

Physics2D.circleCast(origin: Vector2Like, radius: number, direction: Vector2Like, options?: ShapeCastOptions): RaycastHit2D | null

Sweeps a circle and returns the nearest collider hit.

linecast

method

Physics2D.linecast(start: Vector2Like, end: Vector2Like, options?: PhysicsQueryOptions): RaycastHit2D | null

Casts a zero-width segment from start to end.

overlapBox

method

Physics2D.overlapBox(center: Vector2Like, size: Vector2Like, options?: PhysicsQueryOptions & { rotation?: number; }): Collider2D[]

Physics2D.overlapBox runtime operation.

overlapCapsule

method

Physics2D.overlapCapsule(center: Vector2Like, size: Vector2Like, options?: CapsuleQueryOptions): Collider2D[]

Returns colliders overlapping a capsule probe.

overlapCircle

method

Physics2D.overlapCircle(center: Vector2Like, radius: number, options?: PhysicsQueryOptions): Collider2D[]

Returns colliders overlapping a world-space circle.

overlapPoint

method

Physics2D.overlapPoint(point: Vector2Like, options?: PhysicsQueryOptions): Collider2D[]

Returns colliders containing a world-space point.

raycast

method

Physics2D.raycast(origin: Vector2Like, direction: Vector2Like, options?: RaycastOptions): RaycastHit2D | null

Casts a ray and returns the nearest hit. Triggers are excluded unless `includeTriggers` is true.

raycastAll

method

Physics2D.raycastAll(origin: Vector2Like, direction: Vector2Like, options?: RaycastOptions): RaycastHit2D[]

Casts a ray and returns every matching hit sorted nearest-first.

PhysicsMaterial2D interface / Physics / 5 members

Reusable backend-independent material applied to Collider2D shapes.

interface PhysicsMaterial2D

src/shared/types/assets.ts:82

Members

bounciness

property

PhysicsMaterial2D.bounciness: number

Elasticity in the range 0..1.

density

property

PhysicsMaterial2D.density: number

Mass per unit area. Must be greater than zero.

friction

property

PhysicsMaterial2D.friction: number

Surface resistance in the range 0..1.

id

property

PhysicsMaterial2D.id: string

PhysicsMaterial2D.id runtime value.

name

property

PhysicsMaterial2D.name: string

PhysicsMaterial2D.name runtime value.

PhysicsQueryOptions interface / Physics / 2 members

PhysicsQueryOptions scripting API.

interface PhysicsQueryOptions

src/runtime/physics/Physics2D.ts:8

Members

includeTriggers

property

PhysicsQueryOptions.includeTriggers: boolean | undefined

PhysicsQueryOptions.includeTriggers runtime value.

layerMask

property

PhysicsQueryOptions.layerMask: LayerMask | undefined

PhysicsQueryOptions.layerMask runtime value.

PolygonCollider2D object / Physics

Best for irregular objects and complex static geometry; prefer simple shapes when possible.

"PolygonCollider2D"

src/runtime/index.ts:122

RaycastHit2D interface / Physics / 5 members

RaycastHit2D scripting API.

interface RaycastHit2D

src/runtime/physics/Physics2D.ts:12

Members

collider

property

RaycastHit2D.collider: Collider2D

RaycastHit2D.collider runtime value.

distance

property

RaycastHit2D.distance: number

RaycastHit2D.distance runtime value.

entity

property

RaycastHit2D.entity: RuntimeEntity

RaycastHit2D.entity runtime value.

normal

property

RaycastHit2D.normal: Vector2

RaycastHit2D.normal runtime value.

point

property

RaycastHit2D.point: Vector2

RaycastHit2D.point runtime value.

RaycastOptions interface / Physics / 3 members

RaycastOptions scripting API.

interface RaycastOptions

src/runtime/physics/Physics2D.ts:9

Members

distance

property

RaycastOptions.distance: number | undefined

RaycastOptions.distance runtime value.

includeTriggers

property

RaycastOptions.includeTriggers: boolean | undefined

RaycastOptions.includeTriggers runtime value.

layerMask

property

RaycastOptions.layerMask: LayerMask | undefined

RaycastOptions.layerMask runtime value.

Rigidbody2D object / Physics

Component tokens accepted by Entity and Scene component queries.

"Rigidbody2D"

src/runtime/index.ts:114

ShapeCastOptions interface / Physics / 5 members

ShapeCastOptions scripting API.

interface ShapeCastOptions

src/runtime/physics/Physics2D.ts:11

Members

capsuleDirection

property

ShapeCastOptions.capsuleDirection: "vertical" | "horizontal" | undefined

ShapeCastOptions.capsuleDirection runtime value.

distance

property

ShapeCastOptions.distance: number | undefined

ShapeCastOptions.distance runtime value.

includeTriggers

property

ShapeCastOptions.includeTriggers: boolean | undefined

ShapeCastOptions.includeTriggers runtime value.

layerMask

property

ShapeCastOptions.layerMask: LayerMask | undefined

ShapeCastOptions.layerMask runtime value.

rotation

property

ShapeCastOptions.rotation: number | undefined

ShapeCastOptions.rotation runtime value.

TilemapCollider2D object / Physics

Best for optimized collision geometry generated from Tilemap collision layers.

"TilemapCollider2D"

src/runtime/index.ts:128

TilemapCollider2DComponent interface / Physics / 12 members

Builds optimized static collision geometry from Tilemap collision layers.

interface TilemapCollider2DComponent

src/shared/types/components.ts:426

Members

collisionLayerIds

property

TilemapCollider2DComponent.collisionLayerIds: string[]

Empty uses every enabled Tilemap layer marked for collision.

enabled

property

TilemapCollider2DComponent.enabled: boolean

TilemapCollider2DComponent.enabled runtime value.

id

property

TilemapCollider2DComponent.id: string

Stable instance ID used when an entity owns multiple colliders.

isTrigger

property

TilemapCollider2DComponent.isTrigger: boolean

TilemapCollider2DComponent.isTrigger runtime value.

materialId

property

TilemapCollider2DComponent.materialId: string | null

Reserved asset ID for the reusable PhysicsMaterial2D system.

mergeAdjacent

property

TilemapCollider2DComponent.mergeAdjacent: boolean

Greedily merges adjacent solid cells into larger rectangles.

name

property

TilemapCollider2DComponent.name: string

Optional gameplay-facing name, such as MainBody or Feet.

offset

property

TilemapCollider2DComponent.offset: Vector2

TilemapCollider2DComponent.offset runtime value.

oneWay

property

TilemapCollider2DComponent.oneWay: boolean

Makes compatible solid colliders passable from the back side.

oneWayDirection

property

TilemapCollider2DComponent.oneWayDirection: Vector2

World-facing local direction of the solid side.

oneWayTolerance

property

TilemapCollider2DComponent.oneWayTolerance: number

TilemapCollider2DComponent.oneWayTolerance runtime value.

type

property

TilemapCollider2DComponent.type: "TilemapCollider2D"

TilemapCollider2DComponent.type runtime value.

AnimationClip interface / Animation / 11 members

Serializable property or sprite animation asset.

interface AnimationClip

src/shared/types/animation.ts:70

Members

duration

property

AnimationClip.duration: number

AnimationClip.duration runtime value.

events

property

AnimationClip.events: AnimationEventMarker[] | undefined

Authored callbacks fired when playback crosses their timeline position.

fps

property

AnimationClip.fps: number | undefined

Global frame rate for sprite clips.

frames

property

AnimationClip.frames: SpriteAnimationFrame[] | undefined

Ordered sprite-frame asset references.

id

property

AnimationClip.id: string

AnimationClip.id runtime value.

loop

property

AnimationClip.loop: boolean

AnimationClip.loop runtime value.

name

property

AnimationClip.name: string

AnimationClip.name runtime value.

playback

property

AnimationClip.playback: AnimationPlaybackMode | undefined

Explicit playback behavior. `loop` remains for backwards compatibility.

speed

property

AnimationClip.speed: number

AnimationClip.speed runtime value.

tracks

property

AnimationClip.tracks: AnimationTrack[]

AnimationClip.tracks runtime value.

type

property

AnimationClip.type: "property" | "sprite" | undefined

Legacy/property clips default to `property`; newly-created frame clips use `sprite`.

AnimationEvent interface / Animation / 6 members

Runtime payload delivered to Script.onAnimationEvent when playback crosses a marker.

interface AnimationEvent

src/shared/types/animation.ts:54

Members

booleanValue

property

AnimationEvent.booleanValue: boolean | undefined

Optional authored boolean parameter.

frame

property

AnimationEvent.frame: number

Zero-based sprite frame index, or -1 for property clips.

name

property

AnimationEvent.name: string

Authored marker name used to select gameplay behavior.

normalizedTime

property

AnimationEvent.normalizedTime: number

Marker time divided by the authored clip duration, in the range zero through one.

numberValue

property

AnimationEvent.numberValue: number | undefined

Optional authored numeric parameter.

stringValue

property

AnimationEvent.stringValue: string | undefined

Optional authored string parameter.

AnimationEventMarker interface / Animation / 7 members

Serializable event marker authored on an AnimationClip timeline.

interface AnimationEventMarker

src/shared/types/animation.ts:34

Members

booleanValue

property

AnimationEventMarker.booleanValue: boolean | undefined

AnimationEventMarker.booleanValue runtime value.

frameId

property

AnimationEventMarker.frameId: string | undefined

Optional sprite frame identity used to keep frame-authored events attached while reordering.

id

property

AnimationEventMarker.id: string

AnimationEventMarker.id runtime value.

name

property

AnimationEventMarker.name: string

AnimationEventMarker.name runtime value.

numberValue

property

AnimationEventMarker.numberValue: number | undefined

AnimationEventMarker.numberValue runtime value.

stringValue

property

AnimationEventMarker.stringValue: string | undefined

AnimationEventMarker.stringValue runtime value.

time

property

AnimationEventMarker.time: number

Local clip time in seconds.

AnimationPlaybackMode type / Animation

AnimationPlaybackMode scripting API.

type AnimationPlaybackMode

src/shared/types/animation.ts:31

AnimationState interface / Animation / 5 members

One named state backed by an AnimationClip asset.

interface AnimationState

src/shared/types/animator.ts:15

Members

clipId

property

AnimationState.clipId: string | null

AnimationState.clipId runtime value.

id

property

AnimationState.id: string

AnimationState.id runtime value.

name

property

AnimationState.name: string

AnimationState.name runtime value.

position

property

AnimationState.position: Vector2

AnimationState.position runtime value.

speed

property

AnimationState.speed: number

AnimationState.speed runtime value.

Animator object / Animation

Animator scripting API.

"Animator"

src/runtime/index.ts:129

AnimatorController interface / Animation / 6 members

Serializable state machine used by Animator components.

interface AnimatorController

src/shared/types/animator.ts:47

Members

defaultStateId

property

AnimatorController.defaultStateId: string | null

AnimatorController.defaultStateId runtime value.

id

property

AnimatorController.id: string

AnimatorController.id runtime value.

name

property

AnimatorController.name: string

AnimatorController.name runtime value.

parameters

property

AnimatorController.parameters: AnimatorParameter[]

AnimatorController.parameters runtime value.

states

property

AnimatorController.states: AnimationState[]

AnimatorController.states runtime value.

transitions

property

AnimatorController.transitions: AnimatorTransition[]

AnimatorController.transitions runtime value.

AnimatorParameter interface / Animation / 4 members

Serializable parameter declaration and its initial value.

interface AnimatorParameter

src/shared/types/animator.ts:7

Members

defaultValue

property

AnimatorParameter.defaultValue: number | boolean

AnimatorParameter.defaultValue runtime value.

id

property

AnimatorParameter.id: string

AnimatorParameter.id runtime value.

name

property

AnimatorParameter.name: string

AnimatorParameter.name runtime value.

type

property

AnimatorParameter.type: AnimatorParameterType

AnimatorParameter.type runtime value.

AnimatorParameterType type / Animation

Supported Animator Controller parameter kinds.

type AnimatorParameterType

src/shared/types/animator.ts:4

AnimatorTransition interface / Animation / 7 members

Directed state-machine transition. `fromStateId: null` means Any State.

interface AnimatorTransition

src/shared/types/animator.ts:34

Members

conditions

property

AnimatorTransition.conditions: AnimatorTransitionCondition[]

AnimatorTransition.conditions runtime value.

duration

property

AnimatorTransition.duration: number

Reserved state timing in seconds; sprite textures are not cross-faded.

exitTime

property

AnimatorTransition.exitTime: number

Normalized state time. A value of 1 waits for one complete playback.

fromStateId

property

AnimatorTransition.fromStateId: string | null

AnimatorTransition.fromStateId runtime value.

hasExitTime

property

AnimatorTransition.hasExitTime: boolean

AnimatorTransition.hasExitTime runtime value.

id

property

AnimatorTransition.id: string

AnimatorTransition.id runtime value.

toStateId

property

AnimatorTransition.toStateId: string

AnimatorTransition.toStateId runtime value.

AnimatorTransitionCondition interface / Animation / 4 members

Parameter predicate required by a transition.

interface AnimatorTransitionCondition

src/shared/types/animator.ts:26

Members

id

property

AnimatorTransitionCondition.id: string

AnimatorTransitionCondition.id runtime value.

operator

property

AnimatorTransitionCondition.operator: AnimatorConditionOperator

AnimatorTransitionCondition.operator runtime value.

parameterId

property

AnimatorTransitionCondition.parameterId: string

AnimatorTransitionCondition.parameterId runtime value.

value

property

AnimatorTransitionCondition.value: number | boolean

AnimatorTransitionCondition.value runtime value.

RuntimeAnimator class / Animation / 21 members

Public script-facing controller for an Entity's Animator component.

class RuntimeAnimator

src/runtime/animation/RuntimeAnimator.ts:26

Members

currentAnimation

property

RuntimeAnimator.currentAnimation: string | null

Current AnimationClip name.

currentState

property

RuntimeAnimator.currentState: string | null

Current controller state name, or null for direct clip playback.

getBool

method

RuntimeAnimator.getBool(name: string): boolean

Returns a Bool parameter, or false when it is missing.

getFloat

method

RuntimeAnimator.getFloat(name: string): number

Returns a Float parameter, or zero when it is missing.

getInteger

method

RuntimeAnimator.getInteger(name: string): number

Returns an Integer parameter, or zero when it is missing.

hasAnimation

method

RuntimeAnimator.hasAnimation(name: string): boolean

Returns whether the Animator can play a named AnimationClip.

hasState

method

RuntimeAnimator.hasState(name: string): boolean

Returns whether the assigned controller contains a state.

isPlaying

property

RuntimeAnimator.isPlaying: boolean

Whether animation time is currently advancing.

normalizedTime

property

RuntimeAnimator.normalizedTime: number

Elapsed state time divided by clip duration. Looping states may exceed one.

onComplete

method

RuntimeAnimator.onComplete(animationName: string, callback: () => void): () => void

Runs a callback when a state or clip completes. Looping clips notify once per cycle. The returned function unsubscribes early; Script-owned subscriptions are also removed automatically when their Script is destroyed.

pause

method

RuntimeAnimator.pause(): void

Pauses playback at the current frame.

play

method

RuntimeAnimator.play(stateOrClipName: string): void

Plays a controller state, or an AnimationClip when no matching state exists.

playClip

method

RuntimeAnimator.playClip(clip: AnimationClip | string): void

Directly plays an AnimationClip reference, name, or ID. State playback remains recommended.

resetTrigger

method

RuntimeAnimator.resetTrigger(name: string): void

Clears a Trigger parameter without taking a transition.

resume

method

RuntimeAnimator.resume(): void

Resumes playback from the current frame.

setBool

method

RuntimeAnimator.setBool(name: string, value: boolean): void

Sets a Bool parameter used by controller transitions.

setFloat

method

RuntimeAnimator.setFloat(name: string, value: number): void

Sets a Float parameter used by controller transitions.

setInteger

method

RuntimeAnimator.setInteger(name: string, value: number): void

Sets an Integer parameter used by controller transitions.

setTrigger

method

RuntimeAnimator.setTrigger(name: string): void

Arms a Trigger parameter until a matching transition consumes it.

speed

property

RuntimeAnimator.speed: number

Effective component playback multiplier.

stop

method

RuntimeAnimator.stop(): void

Stops playback and rewinds the current state.

SpriteAnimationFrame interface / Animation / 3 members

One sprite frame reference and optional timing override.

interface SpriteAnimationFrame

src/shared/types/animation.ts:24

Members

duration

property

SpriteAnimationFrame.duration: number | undefined

When omitted, duration is derived from the clip FPS.

id

property

SpriteAnimationFrame.id: string

SpriteAnimationFrame.id runtime value.

spriteAssetId

property

SpriteAnimationFrame.spriteAssetId: string

SpriteAnimationFrame.spriteAssetId runtime value.

UIButtonAnimationConfig interface / Animation / 11 members

Motion and color-transition settings applied as a UIButton changes interaction state.

interface UIButtonAnimationConfig

src/shared/types/components.ts:178

Members

easing

property

UIButtonAnimationConfig.easing: UIButtonAnimationEasing

UIButtonAnimationConfig.easing runtime value.

enabled

property

UIButtonAnimationConfig.enabled: boolean

UIButtonAnimationConfig.enabled runtime value.

focusedScale

property

UIButtonAnimationConfig.focusedScale: number

UIButtonAnimationConfig.focusedScale runtime value.

focusPulse

property

UIButtonAnimationConfig.focusPulse: boolean

UIButtonAnimationConfig.focusPulse runtime value.

focusPulseAmount

property

UIButtonAnimationConfig.focusPulseAmount: number

UIButtonAnimationConfig.focusPulseAmount runtime value.

focusPulseSpeed

property

UIButtonAnimationConfig.focusPulseSpeed: number

Focus pulse cycles per second.

hoverScale

property

UIButtonAnimationConfig.hoverScale: number

UIButtonAnimationConfig.hoverScale runtime value.

pressDuration

property

UIButtonAnimationConfig.pressDuration: number

Duration in seconds for the faster pressed-state response.

pressedScale

property

UIButtonAnimationConfig.pressedScale: number

UIButtonAnimationConfig.pressedScale runtime value.

releaseBounce

property

UIButtonAnimationConfig.releaseBounce: number

Temporary scale overshoot after releasing a pressed button.

transitionDuration

property

UIButtonAnimationConfig.transitionDuration: number

Duration in seconds for hover, focus, disabled, and release transitions.

UIButtonAnimationEasing type / Animation

UIButtonAnimationEasing scripting API.

type UIButtonAnimationEasing

src/shared/types/components.ts:175

UIHoverAnimation object / Animation

Cursor-hover motion for any anchored UI visual.

"UIHoverAnimation"

src/runtime/index.ts:138

UIHoverAnimationComponent interface / Animation / 9 members

Adds cursor-hover motion to any anchored UI image, text, button, or panel background.

interface UIHoverAnimationComponent

src/shared/types/components.ts:240

Members

easing

property

UIHoverAnimationComponent.easing: UIButtonAnimationEasing

UIHoverAnimationComponent.easing runtime value.

enabled

property

UIHoverAnimationComponent.enabled: boolean

UIHoverAnimationComponent.enabled runtime value.

hoverAlpha

property

UIHoverAnimationComponent.hoverAlpha: number

Target opacity at full hover.

hoverOffset

property

UIHoverAnimationComponent.hoverOffset: Vector2

Screen-pixel offset applied at full hover.

hoverRotation

property

UIHoverAnimationComponent.hoverRotation: number

Clockwise rotation in degrees applied at full hover.

hoverScale

property

UIHoverAnimationComponent.hoverScale: number

Scale multiplier around the element's UI rectangle center.

pointerCursor

property

UIHoverAnimationComponent.pointerCursor: boolean

Shows a pointer cursor while the element is hovered.

transitionDuration

property

UIHoverAnimationComponent.transitionDuration: number

Duration in seconds when entering or leaving the hovered state.

type

property

UIHoverAnimationComponent.type: "UIHoverAnimation"

UIHoverAnimationComponent.type runtime value.

Camera2D object / Graphics

Camera2D scripting API.

"Camera2D"

src/runtime/index.ts:130

SpriteRenderer object / Graphics

SpriteRenderer scripting API.

"SpriteRenderer"

src/runtime/index.ts:132

Tilemap interface / Graphics / 10 members

Stores one layer-based tile grid and optional collision layers.

interface Tilemap

src/shared/types/components.ts:480

Members

activeLayerId

property

Tilemap.activeLayerId: string

Tilemap.activeLayerId runtime value.

columns

property

Tilemap.columns: number

Tilemap.columns runtime value.

enabled

property

Tilemap.enabled: boolean

Tilemap.enabled runtime value.

layers

property

Tilemap.layers: TilemapLayer[]

Tilemap.layers runtime value.

rows

property

Tilemap.rows: number

Tilemap.rows runtime value.

sortingLayer

property

Tilemap.sortingLayer: number

Draw order among world objects. Higher values render in front of lower values.

tilesetAssetId

property

Tilemap.tilesetAssetId: string | null

Tilemap.tilesetAssetId runtime value.

tilesetColumns

property

Tilemap.tilesetColumns: number

Tilemap.tilesetColumns runtime value.

tileSize

property

Tilemap.tileSize: Vector2

Tilemap.tileSize runtime value.

type

property

Tilemap.type: "Tilemap"

Tilemap.type runtime value.

TilemapAutotile interface / Graphics / 3 members

TilemapAutotile scripting API.

interface TilemapAutotile

src/shared/types/components.ts:506

Members

baseTile

property

TilemapAutotile.baseTile: number

Palette tile used as the start of the default sequential 16-tile rule set.

enabled

property

TilemapAutotile.enabled: boolean

TilemapAutotile.enabled runtime value.

ruleTiles

property

TilemapAutotile.ruleTiles: number[]

Tile index for every 4-neighbor mask from 0 through 15.

TilemapLayer interface / Graphics / 8 members

TilemapLayer scripting API.

interface TilemapLayer

src/shared/types/components.ts:493

Members

autotile

property

TilemapLayer.autotile: TilemapAutotile | undefined

Optional 4-neighbor autotile mapping. Rule index bits are north=1, east=2, south=4, west=8.

collision

property

TilemapLayer.collision: boolean

TilemapLayer.collision runtime value.

enabled

property

TilemapLayer.enabled: boolean

TilemapLayer.enabled runtime value.

id

property

TilemapLayer.id: string

TilemapLayer.id runtime value.

name

property

TilemapLayer.name: string

TilemapLayer.name runtime value.

opacity

property

TilemapLayer.opacity: number

TilemapLayer.opacity runtime value.

tiles

property

TilemapLayer.tiles: number[]

TilemapLayer.tiles runtime value.

tilesetAssetId

property

TilemapLayer.tilesetAssetId: string | null | undefined

Overrides the Tilemap's default tileset for this layer.

AudioSource object / Audio

AudioSource scripting API.

"AudioSource"

src/runtime/index.ts:131

Save object / Storage / 6 members

Persistent key-value store for game progress. The runtime supplies the active implementation to user scripts.

SaveApi

src/runtime/scripting/publicApi.ts:48

Members

clear

method

Save.clear(): void

Save.clear runtime operation.

delete

method

Save.delete(key: string): void

Save.delete runtime operation.

get

method

Save.get<T = unknown>(key: string, fallback?: T | null): T | null

Save.get runtime operation.

has

method

Save.has(key: string): boolean

Save.has runtime operation.

keys

method

Save.keys(): string[]

Save.keys runtime operation.

set

method

Save.set(key: string, value: unknown): void

Save.set runtime operation.

SaveApi interface / Storage / 6 members

Public shape of the Save API exposed to scripts.

interface SaveApi

src/runtime/save/SaveSystem.ts:4

Members

clear

method

SaveApi.clear(): void

SaveApi.clear runtime operation.

delete

method

SaveApi.delete(key: string): void

SaveApi.delete runtime operation.

get

method

SaveApi.get<T = unknown>(key: string, fallback?: T | null): T | null

SaveApi.get runtime operation.

has

method

SaveApi.has(key: string): boolean

SaveApi.has runtime operation.

keys

method

SaveApi.keys(): string[]

SaveApi.keys runtime operation.

set

method

SaveApi.set(key: string, value: unknown): void

SaveApi.set runtime operation.

Build the scene.Script the behavior.

Physics callbacks

Owned resources

Scene

Input

Physics2D

Timer

Events

Navigation

Save

Dialogue

Core

Rendering

Physics

Interface

Gameplay

Members

animationClipId

animatorControllerId

compiledSource

diagnostics

folderId

height

id

mimeType

missing

name

physicsMaterial

scriptProperties

size

sourceChanged

sourceMap

sourceModifiedAt

sourcePath

sourceText

spriteFrame

spriteImport

src

type

width

Members

center

max

min

size

Members

component

contacts

containsPoint

enabled

entity

getBounds

getClosestPoint

id

isTrigger

layer

material

name

normal

offset

oneWay

oneWayDirection

oneWayTolerance

otherCollider

otherEntity

relativeVelocity

selfCollider

Members

name

Members

normal

point

separation

Members

advance

choose

currentLineId

end

isActive

start

Build the scene.
Script the behavior.
